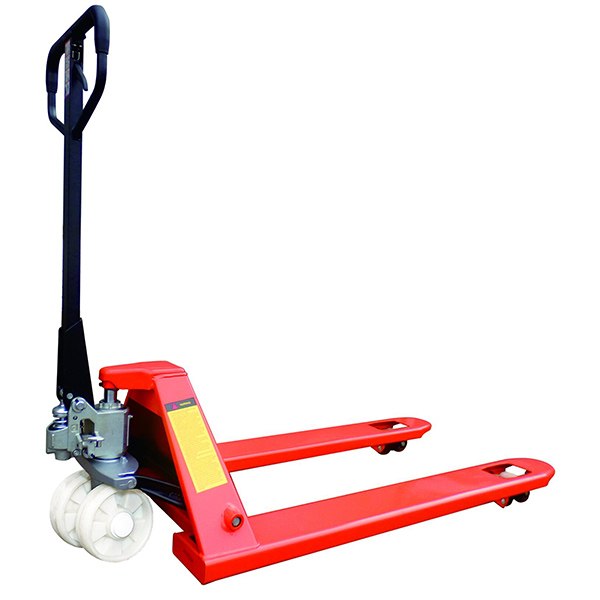

Hand Pallet truck CBY.BF685NY

Hand Pallet Truck CBY.BF

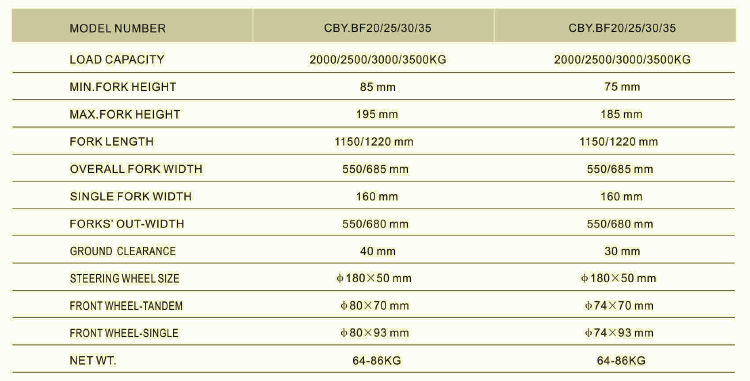

Load Capacity: 2000KG, 2500KG, 3000KG, 3500KG;
Min.Lift height: 85mm, 75mm;
Max.lift height: 195mm, 185mm;
Overall Width: 550mm/685mm;
Fork Length: 1150mm/1220mm;
Single Fork width: 160mm;
Steering wheel size: 180×50mm;

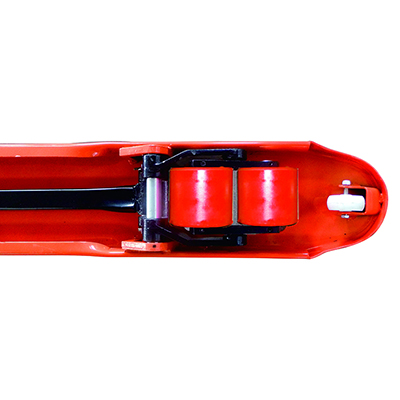

Front wheel: double/single, 80×70mm;

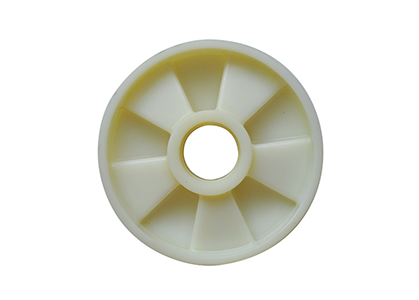

Wheel material: Polyurethane tread bonded to iron core, Nylon, Rubber;

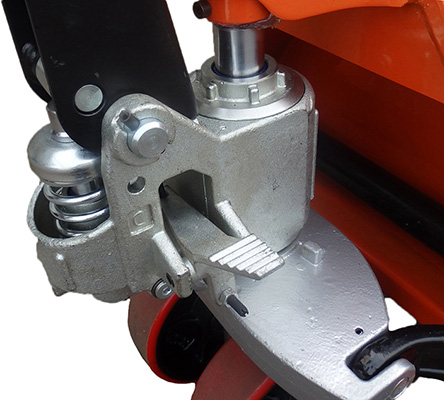

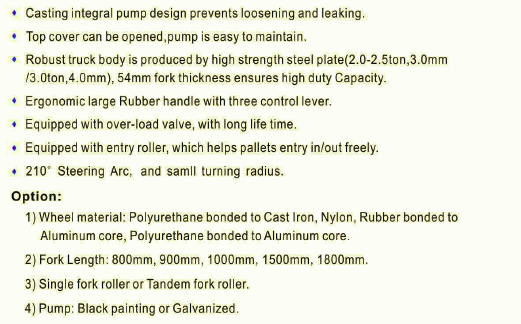

Pump: Casting integral BF model, pump cover can be opened.
